LAS9030 Finger Guard Seal
Finger Guard Seals

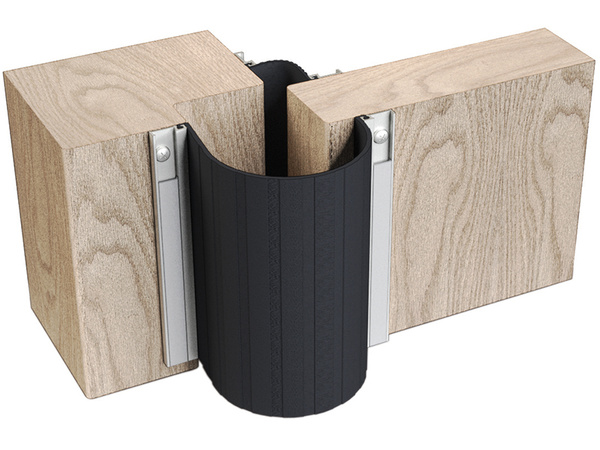

A durable safety finger guard seal, which provides a deterrent to fingers becoming jammed on the hinge cavity side of a door. The product is fixed to the door + the jamb on the hinge cavity side. Trapping fingers in hinged doors can cause horrendous injuries. The risk is especially high in locations where young children are present. To be used in conjunction with LAS9050 si finger guard seal for the hinge knuckle side.
Finish
System specification
| Property | |
|---|---|
| LOCATION | Jambs of hinged doors. It can be used on doors with an opening of 170° when used with LAS9050 si. 180° can be obtained when LAS9030 is used on its own |
| SEAL MATERIAL | Black EPDM rubber |
| Standard finish | Silver anodised aluminium with grey cover strip and black gasket |
| Non-standard finish | Bronze anodised aluminium with black cover strip and black gasket are subject to non-standard charges and additional lead times |
| STANDARD LENGTHS | 1m + 2.1m |
| TEST EVIDENCE | Tested to BS 8613:2017 (Finger protection devices for pedestrian doors - Type A, Class 2). Durability: 300,000 cycles |
